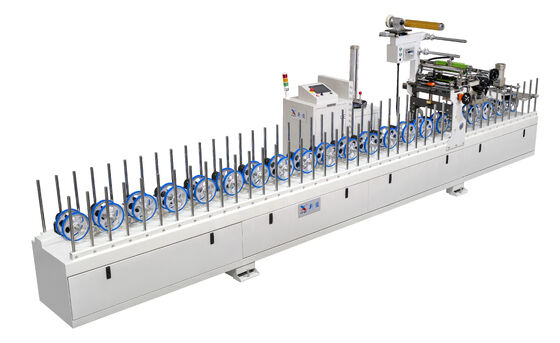

Wood Veneer And Decorative Paint Paper PUR Glue Profile Wrapping Machine
-
Highlight
Wood Veneer Profile Wrapping Machine
,Decorative Paint Paper Profile Wrapping Machine
,PUR Glue Profile Wrapping Machine
-
ConditionNew
-
Video Outgoing-inspectionProvided
-
Machinery Test ReportProvided
-
Marketing TypeHot Product
-
Warranty Of Core Components1 Year
-
Core ComponentsMotor
-
VoltageAC380v/50ha
-
Power13kw
-
Dimension(L*W*H)6000*2000*6000mm
-
WarrantyOne Year
-
Key Selling PointsAutomatic
-
Applicable IndustriesHotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company
-
Showroom LocationNone
-
After-sales Service ProvidedOverseas Service Center Available
-
TypeHot Melt
-
ColorDark Or Light Gery, Optional
-
Based ProfilePVC
-
FeaturesAnti-aging, Anti-uv,pvc, Veneer,leather Etc
-
ApplicationWoodworking
-
ItemScraping, Trimming
-
Glue TypePUR Hot Melt Glue
-
Brand Weidth0.4-3mm
-
After Warranty ServiceNo Service
-
Local Service LocationNone
-
Weight2500kg
-
PortGuangzhou
-
Place of OriginGuangdong, China
-
Brand NameXINJUN
-
CertificationCE,ISO
-
Model NumberXJ-1400
-
Minimum Order Quantity1PCS
-
Price$30,000.00/sets 1-1 sets
-
Packaging DetailsEPE
-
Delivery Time40 work days
-
Payment TermsT/T
-
Supply Ability100pcs/mon
Wood Veneer And Decorative Paint Paper PUR Glue Profile Wrapping Machine
Wood Hot Glue Profile Wrapping Machine For Veneer And Decorative Paint Paper
Wood Hot Glue(PUR) Profile Wrapping Machine
Product Description
1. PUR universal wrapping machine is suitable for sticking leather,pvc, veneer, etc on decorative strip(wpc strips), aluminum profile
2. it is mainly for different angles, ARC, roughness and the edges to get excellent performance.
3. What's more, PUR glue has the features of anti-aging, anti-uv which makes it to be the top choice for outdoor.
| Max.film covering width | 300 mm | Max out of plastic pressure | 50kg/cm2 |
| Max.process thickness | 90 mm | Heating power | 6kw |
| Min.process length | 600mm | Speed of material delivery | 0-50m/min |
| Max diameter of roll cover material | 400mm | Weight | 2500kg |
| Sticking glue power | 5.5kw | Plastic buckets specification | 20 kg(standard) |
| Motibity power | 1.5kw | The inner diameter of the plastic buckets | 280 mm(286 mm can be customized) |
| Temperature range | Homoeothermy-180°c | Working pressure | 0.4-0.8Mpa |
| Platen stroke | Max.500mm | Max motor speed | 60rpm |
Detailed Images
Main Features
Name: PUR melt machine
Brand: Xinjun
Original: China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| Packaging | |
| Size | 6800 (L) * 1600 (W) * 2000 (D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is Shrink film and EPE. |
