Gantry Automatic Loading And Unloading Feeder Machine For PVC / Plywood / MDF

Gantry Automatic Loading And Unloading Feeder Machine For PVC / Plywood / MDF

Products - Automatic Equipment Series
  • Highlight

    MDF Loading And Unloading Feeder Machine

    ,

    Plywood Gantry Automatic Feeder Machine

    ,

    PVC Loading And Unloading Feeder Machine

  • Condition
    New
  • Machine Type
    Automation Equipment
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    Ordinary Product
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Warranty
    1 Year
  • Weight (KG)
    44000 KG
  • Power (kW)
    3.7
  • Key Selling Points
    Long Service Life
  • Showroom Location
    None
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
  • Dimension
    L4700*W4000*H4800
  • Type
    Double Station
  • Voltage
    380V 50HZ
  • Trip
    1800mm
  • Max. Size
    1300-3000mm
  • Min. Size
    1220-300mm
  • Working Thickness
    3-50mm
  • Highest Stomping Plate
    1500mm
  • Max. Workpiece Weight
    ≤50kg
  • Working Air Pressure
    0.4-0.6Mpa
  • Place of Origin
    Guangdong, China
  • Brand Name
    XINJUN
  • Certification
    CE,ISO
  • Model Number
    XJ-1400
  • Minimum Order Quantity
    1PCS
  • Price
    $7,400.00/sets >=1 sets
  • Packaging Details
    EPE
  • Delivery Time
    40 work days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/mon

Gantry Automatic Loading And Unloading Feeder Machine For PVC / Plywood / MDF

  • Gantry Automatic Loading And Unloading Feeder Machine For PVC / Plywood / MDF
Get Price Contact Now

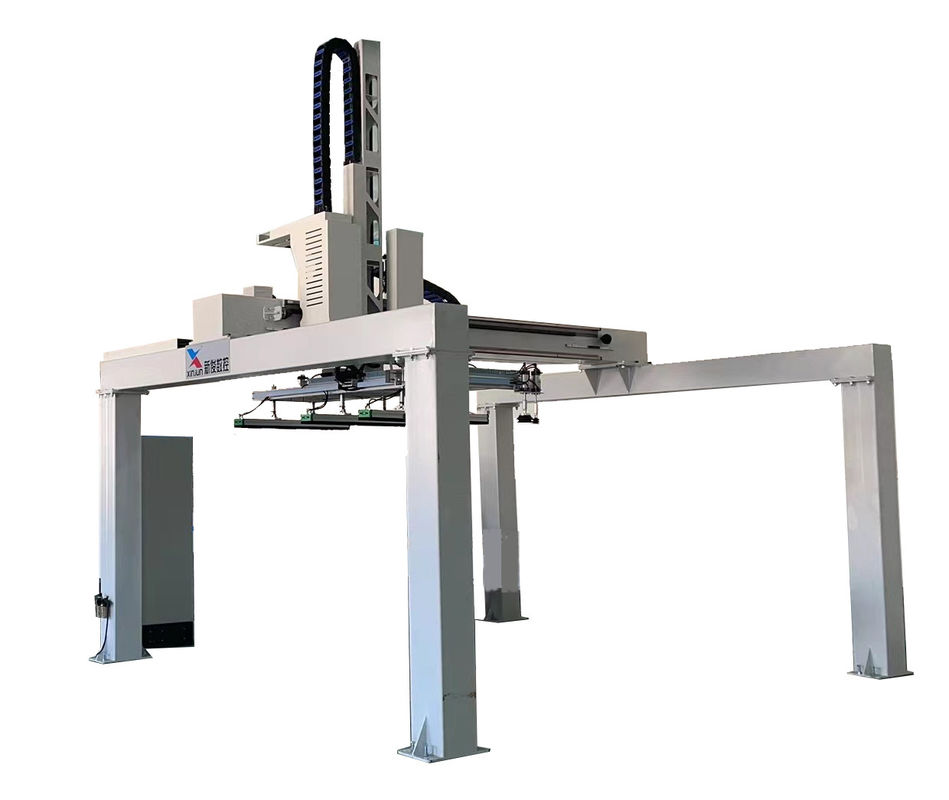

Double Station Automatic Gantry for loading board



Double Station Automatic Gantry Woodworking Machine 380V 50HZ

1,New design Automatic Gantry Woodworking Machine for Efficient Loading

2 ,Gantry feeding board



3,new design gantry feeding pannel

 Gantry Automatic Loading And Unloading Feeder Machine For PVC / Plywood / MDF 0





1. Size

4000*3900*4800mm

2. Capacity parameters

≥4pcs/min

3. Maximum weight of single plate

≤80KG

4. Total stacking height (including backing plate)

≤1600mm

5. Power

4KW

6. Material of suction cup

silica gel, bowl sponge/strip sponge

7. Color of suction cup

Silica gel white/sponge black

8. Chuck moved to send

Start and stop buffer

9. Maximum lifting speed

0-58M/min adjustable

10. Maximum translational velocity

0-113M/min adjustable
