SHUNDE DISTRICT OF FOSHAN CITY XINJUN CNC EQUIPMENT CO.,LTD Jeccica@fsxinjun.com

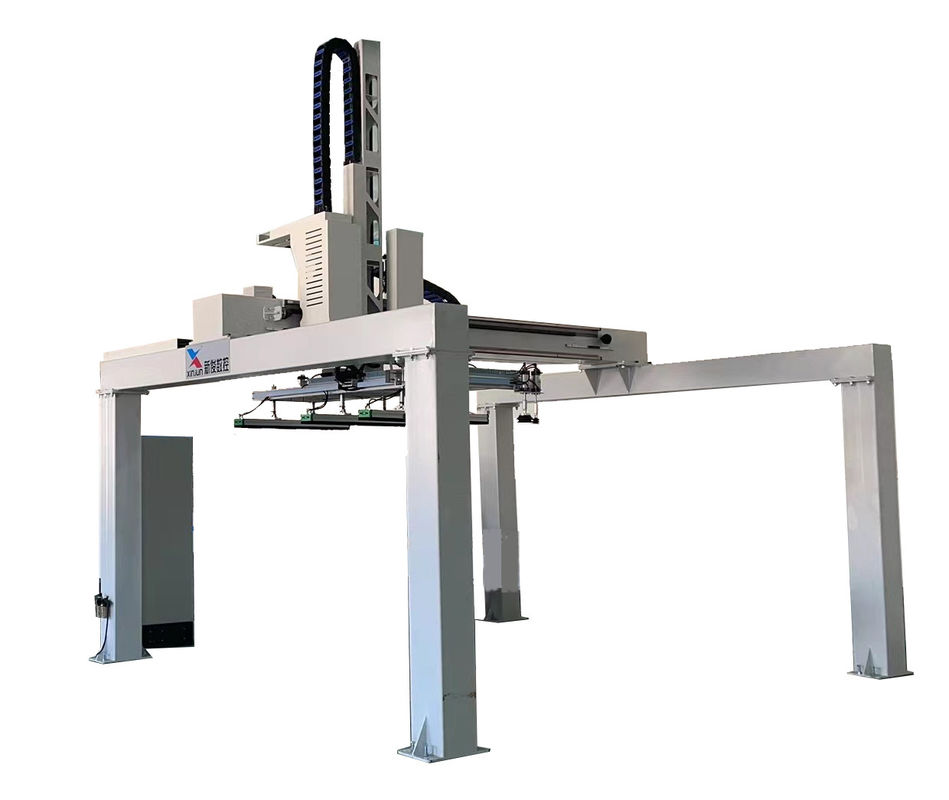

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation

Products - Automatic Equipment Series
  • Highlight

    Gantry Feeder for Automation

    ,

    380V 50HZ Woodworking Machine Loading Gantry

    ,

    380V 50HZ Gantry Feeder For Automation

  • Condition
    New
  • Machine Type
    Automation Equipment
  • Video Outgoing-inspection
    Provided
  • Machinery Test Report
    Provided
  • Marketing Type
    Ordinary Product
  • Warranty Of Core Components
    1 Year
  • Core Components
    PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
  • Warranty
    1 Year
  • Weight (KG)
    44000 KG
  • Power (kW)
    3.7
  • Key Selling Points
    Long Service Life
  • Showroom Location
    None
  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
  • Dimension
    L4700*W4000*H4800
  • Type
    Double Station
  • Voltage
    380V 50HZ
  • Trip
    1800mm
  • Max. Size
    1300-3000mm
  • Min. Size
    1220-300mm
  • Working Thickness
    3-50mm
  • Highest Stomping Plate
    1500mm
  • Max. Workpiece Weight
    ≤50kg
  • Working Air Pressure
    0.4-0.6Mpa
  • Place of Origin
    Guangdong, China
  • Brand Name
    XINJUN
  • Certification
    CE,ISO
  • Model Number
    XJ-1400
  • Minimum Order Quantity
    1PCS
  • Price
    $7,400.00/sets >=1 sets
  • Packaging Details
    EPE
  • Delivery Time
    40 work days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/mon

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation

  • 380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation
Get Price Contact Now

Double Station Automatic Gantry Woodworking Machine loading gantry



Double Station Automatic Gantry Woodworking Machine 380V 50HZ

1,New design Automatic Gantry Woodworking Machine for Efficient Loading

2 ,Gantry feeding board



3,new design gantry feeding pannel

 380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 0





1. Size

4000*3900*4800mm

2. Capacity parameters

≥4pcs/min

3. Maximum weight of single plate

≤80KG

4. Total stacking height (including backing plate)

≤1600mm

5. Power

4KW

6. Material of suction cup

silica gel, bowl sponge/strip sponge

7. Color of suction cup

Silica gel white/sponge black

8. Chuck moved to send

Start and stop buffer

9. Maximum lifting speed

0-58M/min adjustable

10. Maximum translational velocity

0-113M/min adjustable



380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 1

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 2

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 3

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 4

380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 5



380V 50HZ Woodworking Machine Loading Gantry Feeder For Automation 6
